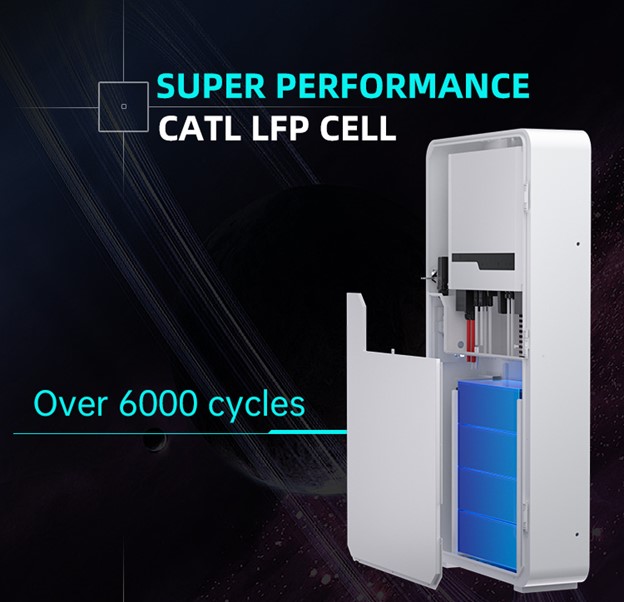

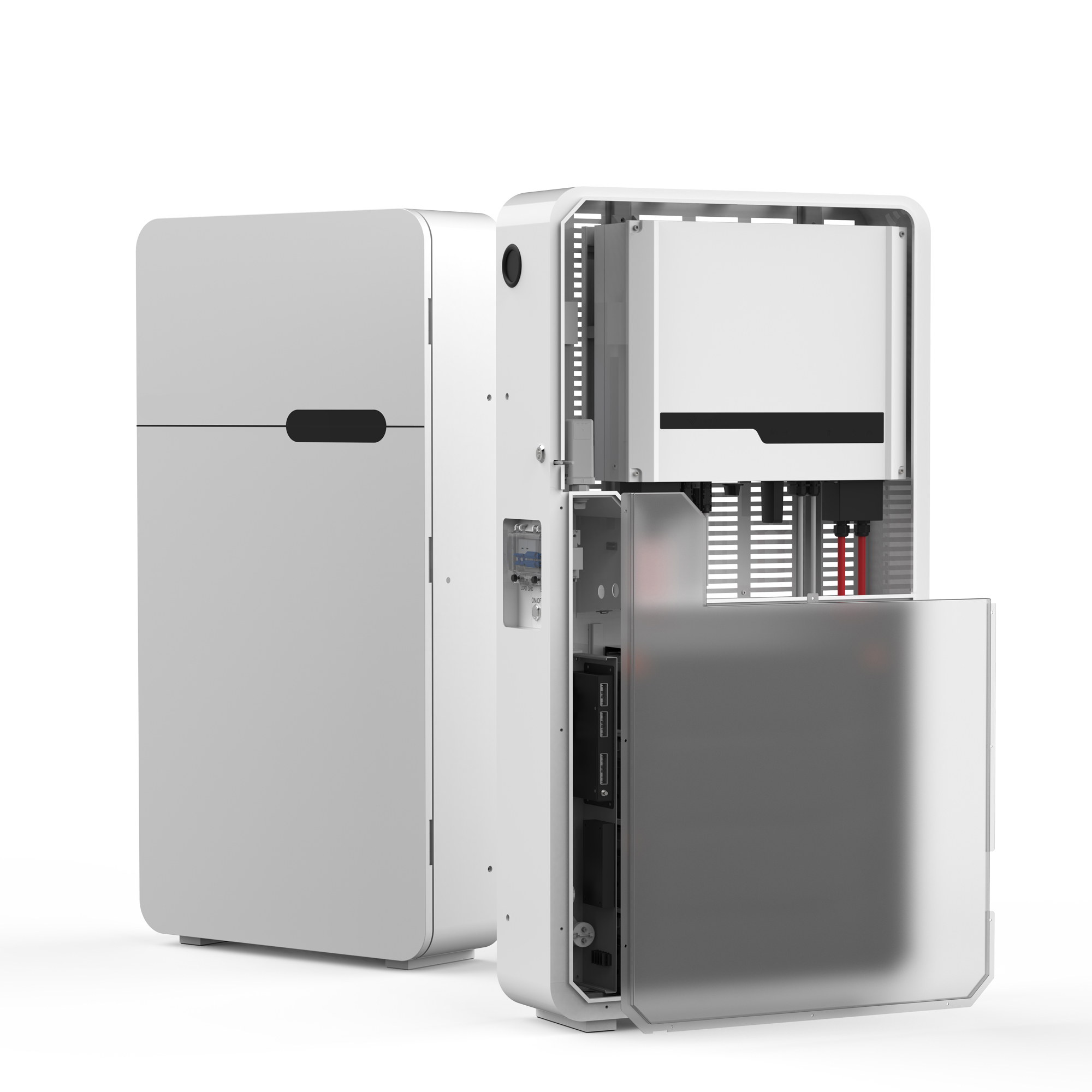

Residential ESS for VPP
With modular structure, which can be flexibly composed of a variety of voltage platform, a variety of capacity level system, and easy maintenance.
The design of battery management system provides the highest reliability.
Using Lithium iron phosphate battery, which has high safety performance, long cycle life, with service life of more than 10 years.
Small size, light weight, easy to carry, which can be quickly applied to various scenarios.
Energy Storage Cabinet
With modular structure, which can be flexibly composed of a variety of voltage platform, a variety of capacity level system, and easy maintenance.
The design of battery management system provides the highest reliability.
Using Lithium iron phosphate battery, which has high safety performance, long cycle life, with service life of more than 10 years.
Flexible rack deployment, which can be quickly applied to various scenarios.
|
Model
|
Energy-B10
|
|||
|
Battery type
|
LFP
|
Voltage Range
|
44.8V~57.6V
|
|
|
Configuration
|
2P16S
|
Rated Charging Current
|
100A
|
|
|
Rated Voltage
|
51.2V
|
Max.Charging Current
|
120A
|
|
|
Rated capacity
|
200Ah
|
Rated Discharge Current
|
100A
|
|
|
Rated energy
|
10.24kWh
|
Max.Discharge Current
|
120A
|
|
|
PV Parameters
|
||||
|
Max. PV Generation Power
|
6500W
|
Max. Short Circuit Current
|
13.8/13.8A
|
|
|
Max. DC Voltage
|
580V
|
MPPT Voltage Range
|
125~550V
|
|
|
Rated DC Operating Voltage
|
360V
|
MPPT Number
|
2
|
|
|
Max. PV Input Current
|
11/11A
|
|||
|
On-Grid Parameters
|
||||
|
On-Grid Rated Power
|
5000VA
|
On-Grid Rated Current
|
21.7A
|
|
|
On-Grid Rated Voltage
|
230V
|
Max. AC Current
|
24.5A
|
|
|
On-Grid Rated Frequency
|
50/60Hz
|
Power Factor
|
0.8 lead~0.8 lag
|
|
|
Electrical Connection
|
L/N/PE
|
THD
|
＜3%
|
|
|
Parallel Operation
|
NO
|
|||
|
Off-Grid Parameters
|
||||
|
Off-Grid Rated Power
|
4600VA
|
|||
|
Off-Grid Rated Voltage
|
230V
|
|||
|
Off-Grid Rated Frequency
|
50/60Hz
|
|||
|
Electrical Connection
|
L/N/PE
|
|||
|
Max. Protection Current
|
30A
|
|||
|
Max. Short Circuit Current
|
43A(10s)
|
|||
|
Peak Power
|
6900VA(3s)
|
|||
|
UPS Switching Time
|
＜0.5s
|
|||
|
Mechanical Parameters
|
||||
|
Weight
|
160kg
|
|||
|
Dimensions (W*D*H)
|
700*212*1320mm
|
|||
|
Operating Conditions
|
||||
|
Ambient temperature
|
Charge: 0~55°C
|
|||
|
Operating humidity
|
5~95%, No Condensing
|
|||
|
Protection Rating
|
IP65
|
|||
|
Cooling
|
Natural Cooling
|
|||
|
Cycle life
|
≥6000 cycles (@25±2°C, 0.5C / 0.5C, 90%DOD, 70%EOL)
|
|||
|
Certifications
|
IEC62619, UL1973, UN38.3, CE, UL9540
|
|||
